Tongue & Groove Flooring Moulding 3/4" - 30

Tongue & Groove Flooring Moulding 3/4" - 30

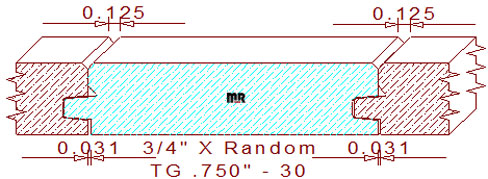

This micro bevel tongue & groove flooring moulding 3/4" - 30 measures .750" thickness, widths can be machined to any desired size within the parameters of the molder or shaper used to mill the pattern. The lovely profile is comprised of a 1/4" wide by 1/4" deep tongue and groove with a 1/16" wide by 1/16" deep chamfer on each side of the pattern, the side that creates the tongue has a nail groove and a 1/32" offset on the bottom, there is .010" of void in the joint area for expansion and contraction of the wood during seasonal changes in relative humidity. When two pieces of milled lumber are joined together they create a 1/8" wide by 1/16" deep v groove down the entire joint area of the face side, the bottom side will have a 1/32" gap to assure a tight joint at the top during installation.

This cad generated dxf file contains four professionally designed profile template drawings with abundant information to create cutters for this beautiful flooring detail, two patterns for milling face side up and the other two for milling face side down. We always provide sufficient blend areas in the knives so no one will ever realize where one cutter begins or ends.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Thickness = .750" / Depth of Cut = .262" (right blades) & .437" (left cutters.)
