Nickel Board Siding Tongue & Groove 3/4" – 32

Nickel Board Siding Tongue & Groove 3/4" – 32

This Nickel Board Siding Tongue & Groove Moulding 3/4" – 32 measures .750" thickness, with a .313" depth of cut on the right groove cutters, and a .437" depth of cut on the left tongue set of knives, finish widths can be adjusted radially to any desired size within the parameters of the moulder being used to mill the pattern.

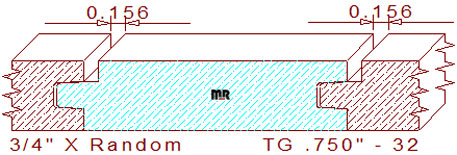

The profile consist of a 9/32" wide by 5/16" tall tongue and groove with a.006" void area built into the joint for expansion and contraction during seasonal changes in relative humidity, it also has a 5/32" wide by 1/4" deep rabbet on the tongue side of the detail. When two boards are joined together they create a 5/32" wide by 7/32" deep channel/gap on one face side of the lumber.

This Cad generated dxf file contains four professionally designed moulding profile templates with abundant information to help you create moulding cutters for this stylish nickel board detail, one set mills face side down, the other set of templates has a .140" wide by .226" deep gap, it is designed to be milled face side up.
