Tongue & Groove 3/4" - 36

Tongue & Groove 3/4" - 36

Tongue & Groove 3/4" - 36

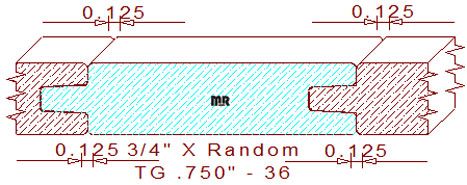

This beautiful 3/4" - 36 rolled edge siding measures .750" in thickness, and widths are adjustable due to a knife design that mills on right & left cutter heads. The tongue and groove are 1/2" deep by 1/4" wide, and all the edges on both top and bottom retain a 1/16" radius edge.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.500
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.718
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$130.50
$137.50
Not Needed
Not Needed
Total:
$268.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.50
$144.50
Not Needed
Not Needed
Total:
$282.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.50
$151.50
Not Needed
Not Needed
Total:
$296.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
