Tongue & Groove 3/4" - 44

Tongue & Groove 3/4" - 44

Tongue & Groove 3/4" - 44

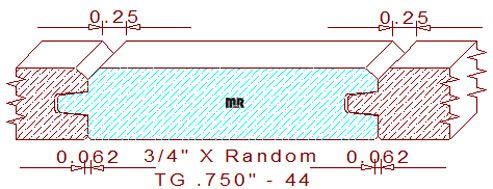

This beautiful 3/4" - 44 double v-groove siding measure 3/4" in thickness and width are manufactured to any desired size within the machinery parameters used to mill the pattern. The profile is composed of a 1/4" wide by 5/16" deep tongue and groove with a .015" void in the joint area for expansion and contraction during seasonal changes in relative humidity. It also has a 1/32" chamfer on the bottom side and a 1/8" chamfer on the top side of the workpiece. When two boards are joined, they create a 1/16" wide v-groove on one side of the board and a 1/4" wide on the opposite side.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.343
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.532
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$130.50
$130.50
Not Needed
Not Needed
Total:
$261.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.50
$137.50
Not Needed
Not Needed
Total:
$275.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.50
$144.50
Not Needed
Not Needed
Total:
$289.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
