Tongue & Groove 3/4" - 45

Tongue & Groove 3/4" - 45

Tongue & Groove 3/4" - 45

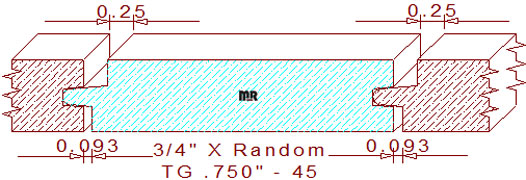

This universal 3/4" - 45 double gap siding measures .750" in thickness and the width is adjustable to any desired size within the parameters of the moulder/shaper used to mill the pattern. The profile is comprised of a 7/32" tall by 13/64" wide groove. The offset tongue is 15/32" tall on one side and 5/16" tall on the opposite side. When two pieces of milled lumber are joined, the tongue will bottom out in the groove, creating a 1/4" wide by 17/64" deep channel on one side, and a 3/32" wide by 17/64" deep channel on the opposite side of the merged boards. This specialized design allows either face side of the lumber to be used during the installation process, creating a unique siding design.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.218
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.468
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$130.50
$130.50
Not Needed
Not Needed
Total:
$261.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.50
$137.50
Not Needed
Not Needed
Total:
$275.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.50
$144.50
Not Needed
Not Needed
Total:
$289.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
