Tongue & Groove 3/4" - 46
Tongue & Groove 3/4" - 46

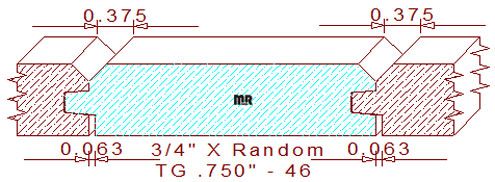

This standard 3/4" - 46 v-groove siding measures 3/4" thickness, and widths can be milled to any desired size within the parameters of the machinery utilized to mill the pattern. The profile is comprised of a 1/4" wide by a 1/4" deep tongue and groove with a 1/16" offset on the bottom to ensure the top of the profile joins together tightly when assembled. It also retains a 3/16" wide chamfer on each face side of both profiles with a .008" void built into the joint area for expansion and contraction of the wood during seasonal changes of relative humidity. When two pieces of lumber are joined, they create a 3/8" wide v-groove on one side of the merged boards.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.313
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.563
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$134.00
Not Needed
Not Needed
Total:
$268.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$141.00
Not Needed
Not Needed
Total:
$282.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$151.50
Not Needed
Not Needed
Total:
$303.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
