Tongue & Groove 3/4" - 66
Tongue & Groove 3/4" - 66

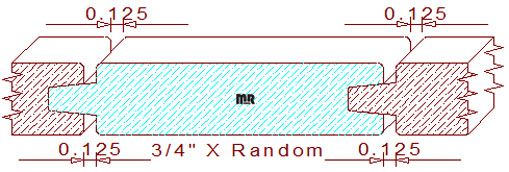

This two-sided 3/4" - 66 gap siding measures .750" in thickness, and the width is adjustable to any desired size within the machinery parameters used to mill the pattern. The profile is comprised of a 5/16" wide by 1/2" deep tongue and a 5/16" wide by 3/8" deep groove with 1/16" radiuses on the edges of both sides. When two pieces of finished milled lumber are joined together; they create a 1/8" channel/gap on both face sides of the lumber with .006" of slop in the joint area to assure a good fit of the joined boards.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.375
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.719
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$141.00
Not Needed
Not Needed
Total:
$275.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$148.00
Not Needed
Not Needed
Total:
$289.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$158.50
Not Needed
Not Needed
Total:
$310.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
