Tongue & Groove 3/4" - 75
Tongue & Groove 3/4" - 75

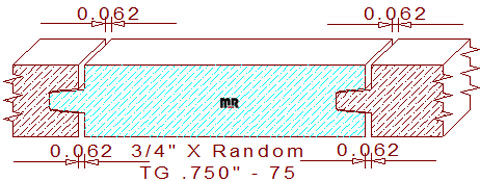

This double-sided 3/4" - 75 nickel board siding measures .750" in thickness, and the width dimension can be any desired size within the parameters of the machinery used to mill the pattern. The profile is commonly referred to as nickel board siding. This name is derived from the gap width being about the same thickness dimension as a nickel, which measures about .074". The female side is comprised of a 1/4" tall by 5/16" deep groove, the male side consists of 1/4" tall by 3/8" wide tongue with a .014" void area to allow for expansion and contraction of the wood during seasonal changes in relative humidity. When two pieces of lumber are joined, they create a 1/16" wide by 1/4" deep channel on both face sides of the merged boards. We also have a similar profile with the same dimension channel on just one face side of the finished boards for your review and consideration, tongue & groove .750" - 69.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.313
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.375
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$134.00
Not Needed
Not Needed
Total:
$268.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$141.00
Not Needed
Not Needed
Total:
$282.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$151.50
Not Needed
Not Needed
Total:
$303.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
