Tongue & Groove 3/4" - 80
Tongue & Groove 3/4" - 80

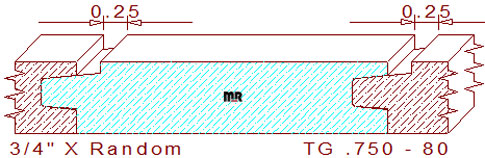

This 3/4" - 80 channel/gap siding measures .750" thickness, allowing the pattern to be machined from four-quarter lumber. The width is milled to any desired size within the parameters of the molder or shaper used to cut the design. The profile is composed of a 3/8" tall by 5/8" wide tongue and a 3/8" tall by 3/8" deep groove; there is a .010" void in the joint area for expansion and contraction of the wood during seasonal changes in relative humidity. When two pieces of lumber are joined, they create a butt joint on the bottom and a 1/4" wide by 1/8" deep channel on the face side of the merged boards.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.375
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.625
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$134.00
Not Needed
Not Needed
Total:
$268.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$141.00
Not Needed
Not Needed
Total:
$282.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$151.50
Not Needed
Not Needed
Total:
$303.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
