Tongue & Groove 3/4" - 81

Tongue & Groove 3/4" - 81

Tongue & Groove 3/4" - 81

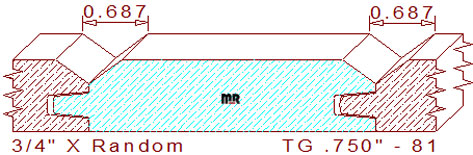

This 3/4" - 81 v-gap siding measures .750" thickness, allowing the detail to be machined from four-quarter lumber. There is a .031" void in the joint area for expansion and contraction of the wood during seasonal changes in relative humidity. When two pieces of lumber are joined together; they create an 11/16" wide by 1/4" deep v-groove on one face side of the joined boards. The attractive profile is composed of a 1/4" wide by 3/8" tongue and a 9/32" wide by 7/16" groove with a 1/4" deep by 11/32" wide chamfer on one side edge of the pattern.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.513
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.891
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$130.50
$137.50
Not Needed
Not Needed
Total:
$268.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.50
$144.50
Not Needed
Not Needed
Total:
$282.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.50
$151.50
Not Needed
Not Needed
Total:
$296.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
