Tongue & Groove 3/4" - 87
Tongue & Groove 3/4" - 87

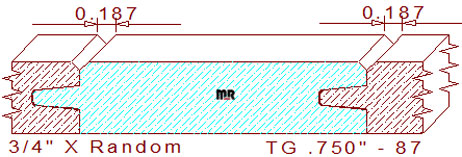

This 3/4" - 87 v-gap siding measures .750" thickness, requiring any size width of four-quarter lumber for milling on an industrial moulder. The stylish profile contains a 1/4" tall by 1/2" deep tongue and groove. The right and left sides retain a 3/32" wide by 3/32" deep forty-five-degree chamfer on edge. When two pieces of milled lumber get joined, they create a 3/16" wide by 3/32" deep v-groove on the face side of the merged boards. There is a built-in .010" void in the joint area for expansion and contraction of the lumber during changes in relative humidity. We offer another pattern with the same 3/16" v-groove with a smaller width t&g for your review and consideration, tongue & groove .750" - 6.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.500
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.740
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$141.00
Not Needed
Not Needed
Total:
$275.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$148.00
Not Needed
Not Needed
Total:
$289.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$158.50
Not Needed
Not Needed
Total:
$310.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
