Tongue & Groove Moulding 13/16" - 1

Tongue & Groove Moulding 13/16" - 1

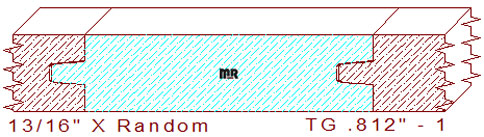

This Tongue & Groove Moulding 13/16" - 1 measures .812" thickness with a .395 depth of cut on the right vertical blades, and a .375" depth of cut on the left vertical knives, widths can be milled to any desired size within the parameters of the machinery used to mill the pattern.

The profile consists of a 1/4" wide by 3/8" deep tongue and groove with .005" void area in the joint for expansion and contraction during seasonal changes of relative humidity. When two pieces of finished milled lumber are joined together they create a simple butt joint.

This professionally drafted cad dxf file contains two high precision template designs to create cutters for this simple butt joint detail. From just an idea in your mind, to reality in your home, our moulding profiles reflect the beauty and style of your imagination, let us help design your custom pattern today.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
