You will be able to manufacture high speed steel or carbide profile knives literally within minutes after downloading this beautiful trim pattern from the purchase dxf file link below. Check out our updated tooling and supplies catalog for other high quality products we supply for your moulder and knife grinding room, all with competitive pricing and fast shipping options.
For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

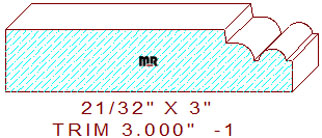

Width = 3.000" / Depth of Cut = .319" (top knives)
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
