Trim Moulding 3" - 22

Trim Moulding 3" - 22

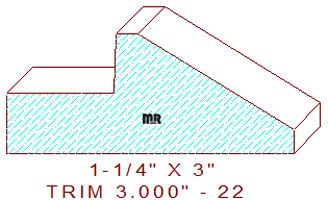

This unique trim moulding measures 3" wide by 1-1/4" thickness, the profile is utilized in the produce section of a supermarkets to place produce tags on, the pattern consist of 1-1/8" wide by 5/8" deep rabbet on one side, a 1/4" wide fillet in the center, and a 1-29/32" wide splay face for displaying the produce tag.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
