Trim Moulding 3" - 25
Trim Moulding 3" - 25

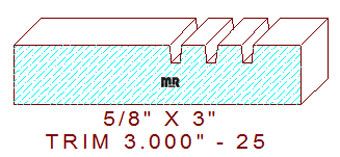

This grooved trim moulding measures 3" wide by 5/8" thickness, the design is composed of three 1/8" wide by 3/16" deep dado's made to resemble saw kerfs, the location of the grooves begin 1/2" from the edge, and are separated by a 1/4" wide fillet.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
