Trim Moulding 3-1/8"
Trim Moulding 3-1/8"

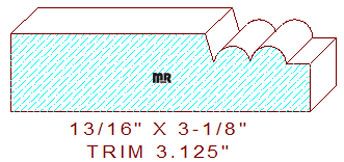

This Double Bead Trim Moulding 3-1/8" measures 3.125" wide by .813" thickness, the profile is comprised of two recessed 3/16" radius half round beads that are flanked by a 1/4" wide fillet on one side and a 2-1/32" wide fillet on the other side.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
