Trim Moulding 3-1/2" - 1

Trim Moulding 3-1/2" - 1

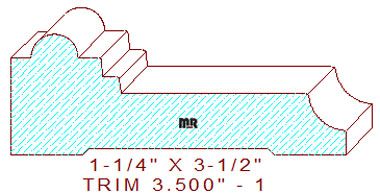

This Trim Moulding 3-1/2" - 1 measures 3.500" wide by 1.250" thickness, the profile is comprised of a half round circle flanked by a horizontal fillet on one side with two stepped fillets on the opposite side that transition into a 1-31/32" wide flat portion with a 13/32" radius cavetto/cove positioned on the thin side of the pattern, this profile can be utilized as a crown moulding extension, casing or even a base cap moulding design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
