Trim Moulding 3-1/2" - 10
Trim Moulding 3-1/2" - 10

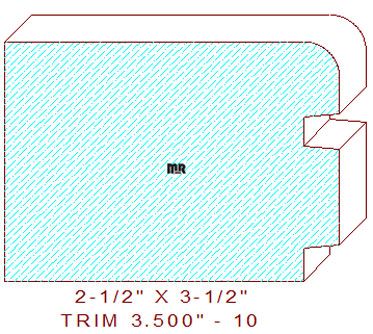

This trim moulding measures 3-1/2" wide, by 2-1/2" thickness, the profile is composed of the following geometrical shapes, 3/8" radius edge on top, a 3/4" tall vertical fillet, 3/8" wide quirk or groove, 1" tall fillet with a 3/8" by 3/8" rabbet on the bottom. The profile design is milled from the left spindle on a moulder, width dimensions could be randomly selected simply by adjusting to desired size.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
