Trim Moulding 4" - 10
Trim Moulding 4" - 10

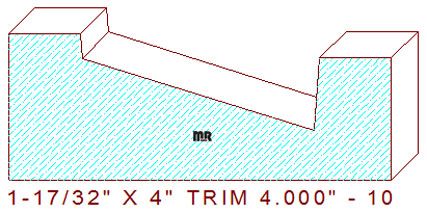

This trim moulding measures 4" wide by 1-17/32" thickness, the profile design consist of two 3/4" wide stepped fillets which are located at different elevations, one at full thickness, the other at 1-9/32" thickness, they are connected to one another by an angled straight line.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
