Trim Moulding 4" - 3

Trim Moulding 4" - 3

Trim Moulding 4" - 3

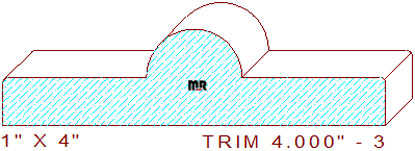

This single bead trim moulding 4" - 3 measures 4.000" wide by 1.000" thickness, this detail will require five quarter lumber for milling on an industrial molder. The simplistic custom pattern is comprised of a one inch wide half round circle in the middle, flanked by two, one and one half inch wide line segments with a one sixteenth eased edge, leaving a one half inch thickness dimension on each side of the pattern.

Be sure to check out a few other profile designs for different rooms in your beautifully stylish home, with over 15,000 patterns in our search by size moulding catalog there is something for everyone’s creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce this creative pattern.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.000" / Depth of Cut = .718" (top knives.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
