Trim Moulding 4" - 4
Trim Moulding 4" - 4

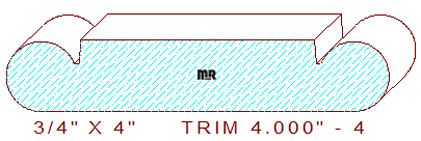

This symmetrical trim moulding measures 4" wide by 3/4" thickness, the profile is composed of two 3/8" radius three quarter round circles on each end of the design they are divided by a 2-7/16" wide fillet with a 1/16" wide quirk attached. it will require three sets of moulding knives to properly mill this pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
