Trim Moulding 4" - 7

Trim Moulding 4" - 7

Trim Moulding 4" - 7

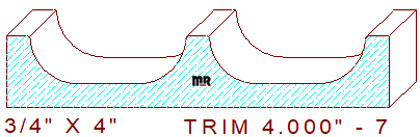

This pencil tray moulding 4" - 7 measures 4.000" wide by .750" thickness, allowing the detail to be milled from four quarter lumber. The double profile design is composed of two 1-5/8" wide channels divided by three 1/4" wide raised fillets. The troth is made up of two 5/8" wide straight lines flanked by 1/2" radius coves. After the milling and finishing process these are installed on pull out desk drawers so pencils and pens have a place to rest when not in use, keeping the drawer clutter free.

We offer thousands of inspirational architectural mouldings that will shape the contour of every exquisite room in your client's beautiful home. Download all our free moulding dxf files, see how easy the services we provide can increase productivity while reducing manufacturing cost.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.000" / Depth of Cut = .500" (top knives.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
