Trim Moulding 4" - 9

Trim Moulding 4" - 9

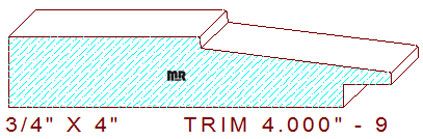

This trim moulding 4" - 9 measures 4.000" wide by .750" thickness, the profile consist of a 2" wide fillet on top, it drops 1/8" in elevation, from that point, it reduces its thickness again by 1/4" thru an angled line, it has two eased edges on the profiled side, the back side rabbet measures 1/2" wide by 1/4" deep. This would make a nice baseboard with a space for paneling to fit into.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
