Trim Moulding 5"
Trim Moulding 5"

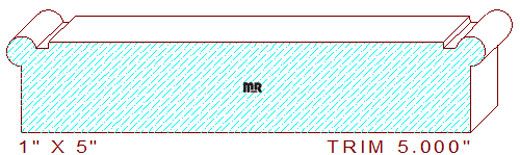

This Beaded Edge Trim Moulding 5" measures 5.000" wide by 1.000" thickness, the profile is comprised of a 4.125" wide sunk fillet in the middle attached to a 1/16" deep by 1/8" wide quirk that's connected to a protruding 5/32" radius three quarter round bead on each side edge of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
