Trim Moulding 5-1/2" - 3

Trim Moulding 5-1/2" - 3

Trim Moulding 5-1/2" - 3

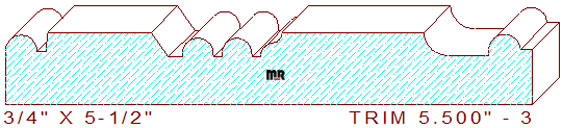

This decorative beaded trim moulding 5-1/2" - 3 measures 5.500" wide by .750" thickness, enabling the profile to be machined out of four quarter lumber. The lovely profile is composed of a 21/64" wide half round circle with a 3/32" wide sunk fillet and a 1-5/64" wide flat line on the top left, attached to a 1/4" deep angled line that joins to two recessed half round beads divided by small line segments with a short cyma recta in the center, connected to a 1-31/64" wide flat line with a 43/64" wide congee merged with another half round circle and a 1/4" fillet on the right side of the design.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs. Whether you own a recently built house or older style residence, we have the ability knowledge and experience to create profiles that will complement the architectural decor of your elegant home or office.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.500" / Depth of Cut = .346" (top knives.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
