Trim Moulding 5-1/2" - 4
Trim Moulding 5-1/2" - 4

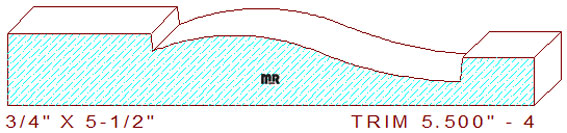

This Drawer Front Trim Moulding 5-1/2" - 4 measures 5.500" wide by .750" thickness, the profile is comprised of a 1-1/2" wide by 3/16" deep stepped fillet that transitions into a cyma reversa attached to a 3/4" wide by 1/4" deep fillet positioned on the thinner side of the pattern. Feel free to network our entire moulding catalog on your website and offer a wider range of moulding profiles to your clients.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
