Trim Moulding 5-13/16"

Trim Moulding 5-13/16"

Trim Moulding 5-13/16"

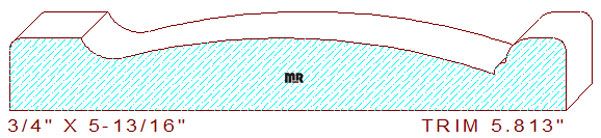

This Drawer Front Trim Moulding 5-13/16" measures 5-13/16" wide by 3/4" thickness, the profile is composed of a radius edge fillet with attached cove on one side, a 6-25/32" radius arc in the center and a two tiered radius edge fillet on the opposite side of the design, we also have a larger version of a same shape located at Trim 7.000" - 2.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
