Trim 6" - 3
Trim 6" - 3

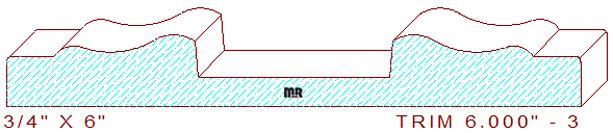

This unique 6" - 3 trim mould measures 6.000" wide by .750" thickness, permitting the detail to be cut from four-quarter lumber. The symmetrical profile is comprised of a 2" wide by 3/8" deep sunk fillet in the center, flanked by two wave-like bidirectional cyma reversa and a 1/2" broad line segment with a 1/16" round-over on each side edge of the pattern. This detail is utilized in the recreational vehicle industry as a trim piece. Try one of our many
plant on/applied moulding patterns in this plowed area, alter the search parameters to 2" wide to review the profiles.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.000
Depth of Cut: 0.441
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
