Trim Moulding 6" - 6

Trim Moulding 6" - 6

Trim Moulding 6" - 6

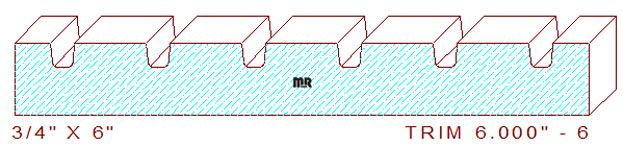

This Trim Moulding 6" - 6 measures 6.000" wide by .750" thickness, the profile is comprised of six evenly spaced 1/4" wide by 1/4" deep grooves with 1/16" radiuses at the bottom of the groove, the edges of the profile have 3/8" wide fillets while the center has 3/4" wide fillets, when butted together the spacing between the grooves will become an equal dimension of 3/4" wide. There is also an offset tongue profile not show that fit into the a single groove which measures 1-1/4" long by 3/4" thickness.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
