Trim Moulding 6" - 8
Trim Moulding 6" - 8

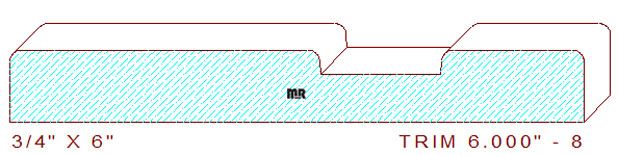

This Drawer Front Trim Moulding 6" - 8 measures 6.000" wide by .750" thickness, the profile is comprised of a 3-1/4" wide double 1/8" radius fillet attached to a 1-1/4" wide sunken fillet and a 1-1/2" wide double 1/8" radius edge fillet.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
