Trim Moulding 7"

Trim Moulding 7"

Trim Moulding 7"

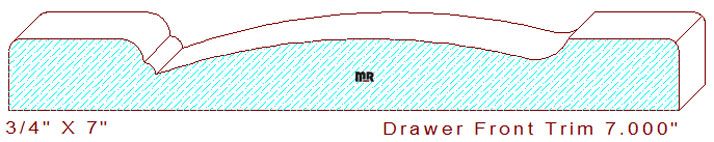

This drawer front trim moulding 7" measures 7.000" wide by .750" thickness, the profile is composed of a 1-5/32" wide radius edge fillet with attached cove on one side, a 6-25/32" radius arc is positioned in the center and a 1-5/32" wide two tiered radius edge fillet on the other side of the design, we also have a smaller version of a same pattern named Trim 5.813".

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
