Architrave/Header 3-1/4" - 4

Architrave/Header 3-1/4" - 4

Architrave/Header 3-1/4" - 4

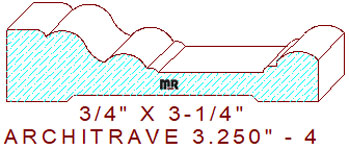

This awesome-looking architrave/header 3-1/4" - 4 measures 3.250" wide by .750" thickness. The profile is composed of a 13/32" wide horizontal line with a 1/8" eased edge, joined to an elevation changing cyma reversa with two semicircular beads attached to a 1-3/32" wide sunk fillet with a quarter and half round arc on the thin side of the design. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

Ever wonder why some knives never exactly line up with one another in the cutter head? Maybe a Weinig optical measuring stand and reviewing the process in which you align the blades in the cutter head will help eliminate this issue.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.250
Depth of Cut: 0.453
Bottom Cutter Head
Width: 3.250
Depth of Cut: 0.062

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$243.00
$243.00
Total:
$486.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$259.00
$259.00
Total:
$518.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$275.00
$275.00
Total:
$550.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
