Architrave/Header 3-5/8"

Architrave/Header 3-5/8"

Architrave/Header 3-5/8"

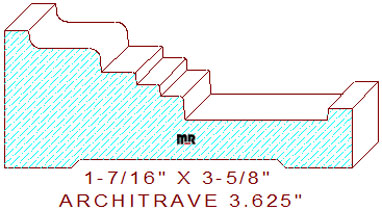

This southwestern-style architrave 3-5/8" measures 3.625" wide by 1.437" thickness. Eight-quarter lumber will be required for milling this pattern on an industrial machine. The gracefully stepped profile is composed of a 1/4" wide line segment on the tall left side, connected to a bidirectional congee made from 1/8" coves that transitions into a series of three elevation changing stepped lines, attached to a 1-1/2" wide by 1/4" deep sunk fillet with a 1/4" wide by 1/8" tall raised fillet on the thin side of the pattern. Browse our backout category for a suitable relief cut for this detail, we're confident you will find a functional design to suit your needs.

Review our commentary on custom-made pressure shoes this helpful step-by-step article will help you mill this profile to perfection. We design and grind knives for all the major machinery brand names, including Weinig, Leadermac, Diehl, Kentwood, Wadkin, Scmi, Shop Fox, Williams & Hussey, and more. Try our exceptional services; you'll be delighted with the results; all the beautiful profiles you manufacture will surely be a cut above the rest.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.625
Depth of Cut: 0.938
Bottom Cutter Head
Width: 3.625
Depth of Cut: 0.093

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$279.25
$261.75
Total:
$541.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$296.75
$279.25
Total:
$576.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$314.25
$296.75
Total:
$611.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
