Architrave/Header 4" - 6

Architrave/Header 4" - 6

Architrave/Header 4" - 6

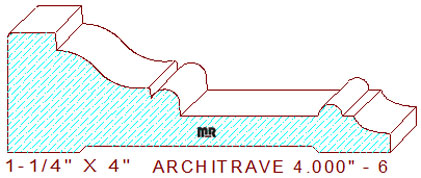

This architrave/header 4" - 6 measures 4.000" wide by 1.250" thickness, with a 1.052" depth of cut on the top horizontal cutters. The detailed profile is comprised of a 3/16" radius edge fillet, connected to an elevation changing cyma reversa, attached to a thumbnail-shaped arc that transitions into a 1-7/16" wide sunk fillet, joined with a 1/4" wide half-round bead, small horizontal line, and an elliptical-shaped cavetto located on the thin side of the pattern.

Due to unevenness in some designs, you may want to read our custom-made hold-down shoes, this article will help mill this pattern to perfection, with no snipe or chatter left on the finished profile.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 1.052
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.062

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$299.50
$280.50
Total:
$580.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$318.50
$299.50
Total:
$618.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$337.50
$318.50
Total:
$656.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
