Architrave/Header 5-1/4" - 3
Architrave/Header 5-1/4" - 3

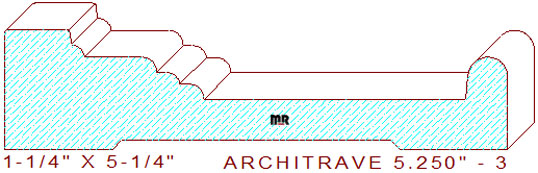

This distinguished architrave/header 5-1/4" - 3 measures 5.250" wide by 1.250" thickness, permitting the detail to be machined out of six-quarter lumber. The creative profile is comprised of an 11/16" wide raised fillet with 3/64" eased edges on the top left, attached to a series of cascading quarter round beads at different widths joined to a 2-3/4" wide sunk fillet in the center, merged with a 7/16" wide tall half round bead on the right side of the pattern. Browse our backout category for an appropriate relief cut for the bottom of this detail; we're confident you will find a suitable design to match your needs.
Our professionally designed acrylic templates and knives include the required draft angles to maintain the ability to sharpen the blades properly without modifying the detail, while simultaneously prolonging the milling time between sharpening. Whether you own a Weinig, Wadkin, Leadermac, SCM, Diehl, Northtech, or Homag, our precision cutters will mill flawlessly on them all.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.250
Depth of Cut: 0.730
Bottom Cutter Head
Width: 5.250
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$379.00
$355.00
Total:
$734.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$403.00
$379.00
Total:
$782.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$439.00
$415.00
Total:
$854.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
