Architrave / Header Moulding 5-1/2" - 2

Architrave / Header Moulding 5-1/2" - 2

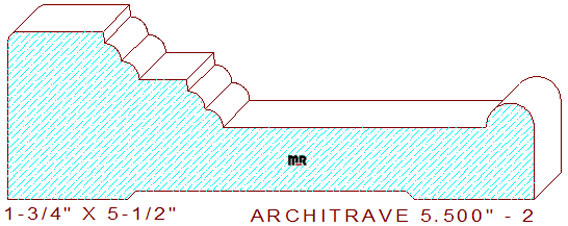

This beautiful architrave/header moulding 5-1/2" - 2 measures 5.500" wide by 1.750" thickness requiring at least eight quarter lumber to mill this pattern on an industrial style molder. The elegant design is comprised of a 1" wide raised fillet with a 1/8" eased outside edge and a 1/8" vertical step that transitions into four cascading 3/16" quarter round beads, divided by a 1/2" wide stepped line in the middle, the off center sunk fillet measures 2-3/4" wide with a 1/2" wide half round circle on the thin side of the design. Browse our backout category for a suitable relief cut for this detail, we’re confident you will find the right one to suit your needs.

Before you begin knife grinding procedures, please read our article on knife cutting circles to see if you can safely mill this pattern on your machinery, this profile will not be able to be milled on certain models of molders.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.500" / Depth of Cut = 1.187" (top knives) & .093" (bottom cutters.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
