Architrave / Header Moulding 5-1/2" - 4

Architrave / Header Moulding 5-1/2" - 4

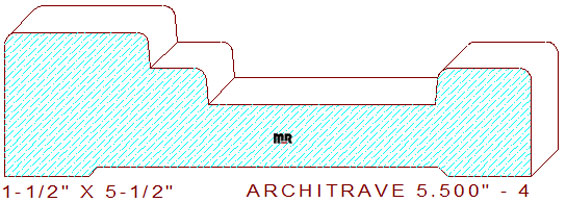

This southwest style architrave/header moulding 5-1/2" - 4 measures 5.500" wide by 1.500" thickness. This rather large tiered header is composed of a 2-3/8" wide sunk fillet in the center, attached to a 1-1/2" wide by 3/8" deep and a 5/8" wide by 3/8" deep stepped lines with 1/8" eased edges on one side, and a 1" wide by 3/8" tall raised fillet on the opposite side. The profile is oriented in the moulder with the thicker side up against the fixed inside fence, a simple lateral movement of 1-9/16" outward and 3/8" downward of the molder pressure shoe and it will sit evenly on the two flat surfaces as shown in the picture above. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

Ever wonder why certain species of lumber have tear out problems during the milling process? Find out more on how to reduce and eliminate tear issues by changing the cutter head hook angle on the knives. Purchasing 12/20 duel angle cutter heads will save a substantial amount of money when investing in this style of moulder tooling.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.500" / Depth of Cut = .750" (top knives) & .093" (bottom cutters.)
