Architrave/Header 6" - 3

Architrave/Header 6" - 3

Architrave/Header 6" - 3

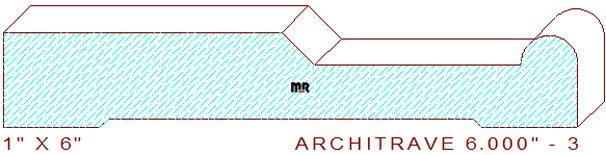

This modern architrave/header 6" - 3 measures 6.000" wide by 1.000" thickness allowing the pattern to be milled from five-quarter lumber. The simplistic profile is comprised of a 2-29/32" broad straight line with an 11/32" forty-five-degree beveled edge, connected to a 2-5/32" wide sunk fillet with a 19/32" wide half circle on the right side of the design. Browse our backout category for a suitable relief cut for this detail, we're confident you will find the right one to suit your needs.

We provide the cut steel size on all our template designs, this vital information allows you to purchase the correct size width of knife steel before you start grinding procedures for moulding production.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.000
Depth of Cut: 0.500
Bottom Cutter Head
Width: 6.000
Depth of Cut: 0.093

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$380.50
$380.50
Total:
$761.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$407.50
$407.50
Total:
$815.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$434.50
$434.50
Total:
$869.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
