Backout/Relief Cut 3-3/8" - 6

Backout/Relief Cut 3-3/8" - 6

Backout/Relief Cut 3-3/8" - 6

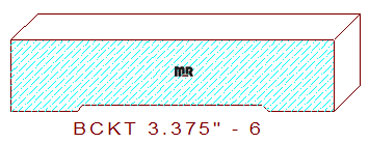

This backout 3-3/8" - 6 measures 3.375" wide. This relief cut can be utilized on hundreds of our baseboard, casings, and chair rails. The profile is comprised of a 2" wide, by 1/16" deep plow, with forty-five-degree chamfers that transition into an 11/16" wide horizontal fillet on each side of the pattern. The maximum width this detail can mill is 4-1/8" wide, with the cutterhead axially positioned at .000".

If you have any questions or concerns about knife grinding procedures for any of our designs, please contact us we would be honored to assist you.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 3.375
Depth of Cut: 0.062

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$249.25
Total:
$249.25
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$265.75
Total:
$265.75
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$282.25
Total:
$282.25
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
