Backout/Relief Cut 7-1/4"- 1

Backout/Relief Cut 7-1/4"- 1

Backout/Relief Cut 7-1/4"- 1

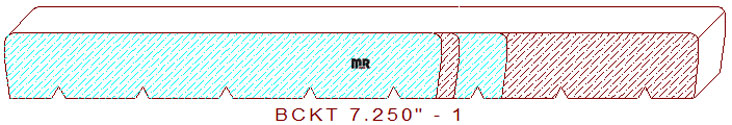

This 7-1/4"- 1 universal backout measures 7.250" wide. The profile comprises eight triangular-shaped grooves measuring 9/64" wide by just under 1/8" in height. They're separated by seven 47/64" wide line segments with a 1/2" wide straight line on both side edges of the pattern. The shaded areas in the image represent some of the more common size width door jambs that this detail would be helpful on during the milling process. The maximum width this backout could mill is eight inches wide when the bottom cutterhead is positioned at .000" axially. The detail can also be utilized on many of our door jambs, shiplap siding and tongue and groove designs.

Proper tool balance is essential to your molding operation. Read how critical it is to have balanced knives, screws, and gibs in the cutter head. There is also information on the problems it can create if you focus on something other than this simple task. Protect your current woodworking machinery; your clients will appreciate the wood molding quality and your disciplined manufacturing approach.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 7.250
Depth of Cut: 0.115

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$442.00
Total:
$442.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$474.00
Total:
$474.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$506.00
Total:
$506.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
