Fluted Back Out/Relief Cut Moulding 7-7/16"

Fluted Back Out/Relief Cut Moulding 7-7/16"

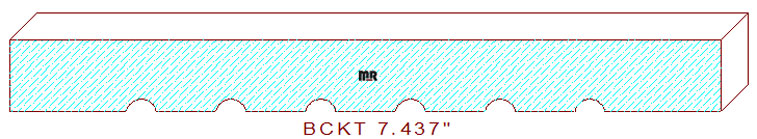

This Fluted Backout/Relief Cut Moulding 7-7/16" measures 7.437" wide, with a .125" depth of cut on the top or bottom set of moulding knives. This detail can be utilized on many of our Tongue & Groove flooring, Shiplap siding, and larger sized Door jamb mouldings.

The semicircular design is comprised of six 5/16" wide by 1/8" deep half round circles, divided by 5/8" wide fillets in the center, and 1-7/32" wide straight lines on each side edge of the pattern. The maximum width this backout/relief cut could mill is 8-3/16" wide when the bottom moulder spindle is positioned at .000" axially.

To help better understand why these types of cuts are used in moulding manufacturing, please refer to our helpful article titled Moulding Backout Relief Cuts. After reading this commentary, we trust you will find the appropriate style design for your custom moulding.
