Backout/Relief Cut 7-1/2"

Backout/Relief Cut 7-1/2"

Backout/Relief Cut 7-1/2"

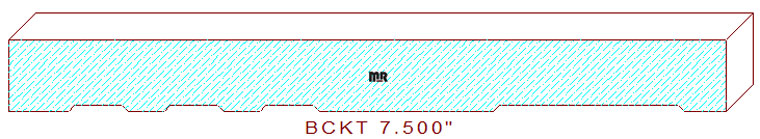

This 7-1/2" universal backout measures 7.500" in width. The profile comprises three 5/8" wide, trapezoid-shaped plows, separated by 13/32" wide fillets with a 21/32" broad straight line on the left side of the pattern. Joined to a 1-13/16" broad horizontal line in the center, attached to a 2" wide plow flanked by forty-five-degree chamfers, with a 7/16" broad line on the right side. The maximum width this backout could mill is 8-1/4" wide when the bottom cutterhead is positioned at .000" axially.

Do you ever wonder why certain wood species have tear-out issues during milling? Find out more about reducing and eliminating these issues by changing the cutter head hook angle on the knives. Consider purchasing 12/20-degree duel angle cutter heads. Your company will save substantial money when investing in advanced tooling.

The up-to-date combined high-speed steel knives & template prices are listed below for quoting purposes.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 7.500
Depth of Cut: 0.062

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$455.50
Total:
$455.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$488.50
Total:
$488.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$521.50
Total:
$521.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
