Backout/Relief Cut 8-1/4" - 2
Backout/Relief Cut 8-1/4" - 2

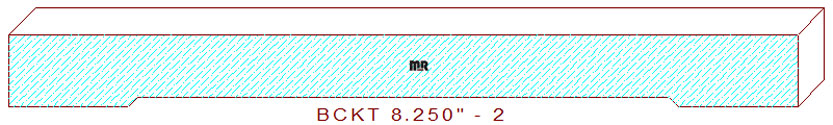

This 8-1/4" - 2 backout measures 8.250" in width. The symmetrical profile comprises a 5-3/4" wide by 3/32" deep plow flanked by forty-five-degree chamfers, with a 1-1/4" broad flat area on each side edge of the pattern. The maximum width these knives can mill is 9" in width with the cutterhead positioned at .000" axially.
Ever wonder why some knives never precisely line up in the cutter head? Perhaps a Weinig optical measuring stand and reviewing the process in which you align the blades in the cutter head will help eliminate this issue.
The up-to-date combined high-speed steel knives & template prices are listed below for quoting purposes.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 8.250
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$511.00
Total:
$511.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$547.00
Total:
$547.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$601.00
Total:
$601.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
© Copyright 1997 - 2025 Mirror Reflections Inc. All Rights Reserved.
