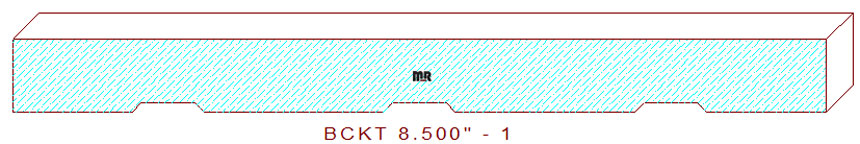

This 8-1/2" Backout/Relief Cut Moulding - 1 measures 8.500" wide, with a .093" depth of cut on either the top or bottom horizontal profile knives. This relief cut can be used on many of our tongue & groove flooring and decking patterns, door jambs, and some of our lovely crown moulding patterns.
The profile design is comprised of three 3/4" wide by 3/32" deep trapezoid shaped plows, flanked by two 1-7/8" wide straight fillets in the center, with a 1-1/4" wide fillet on each side edge of the pattern. The maximum width these knives can mill is 9-1/4" wide when the bottom moulder spindle is positioned at .000" axially.
Ever wonder why certain species of lumber have tear out problems during the milling process? Find out more on how to reduce and eliminate tear issues by changing the cutter head hook angle on the profile cutters.
