Backout/Relief Cut 8-5/8" - 3

Backout/Relief Cut 8-5/8" - 3

Backout/Relief Cut 8-5/8" - 3

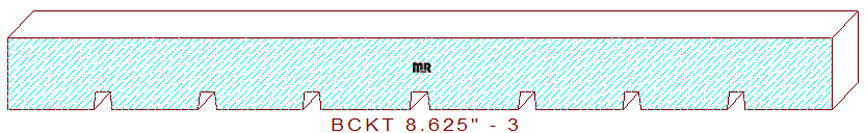

This 8-5/8" - 3 grooved backout measures 8.625" in width. The symmetrical pattern is comprised of seven 3/16" wide by 3/16" deep grooves, evenly divided by 29/32" broad lines throughout the pattern. The maximum width these knives can mill is 9.375" wide, with the cutterhead positioned at .000" axially. The saw kerf design can be utilized on many of our stylish tongue and groove details, interior & exterior door jambs, and shiplap siding patterns.

Do you ever wonder why certain wood species have tear-out issues during milling? Find out more about reducing and eliminating these issues by changing the cutter head hook angle on the knives. Consider purchasing 12/20-degree duel angle cutter heads. Your company will save substantial money when investing in unique tooling.

The up-to-date combined high-speed steel knives & template prices are listed below for quoting purposes.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 8.625
Depth of Cut: 0.187

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$511.75
Total:
$511.75
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$549.25
Total:
$549.25
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$586.75
Total:
$586.75
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
