Bar Rail 5-1/8" - 2

Bar Rail 5-1/8" - 2

Bar Rail 5-1/8" - 2

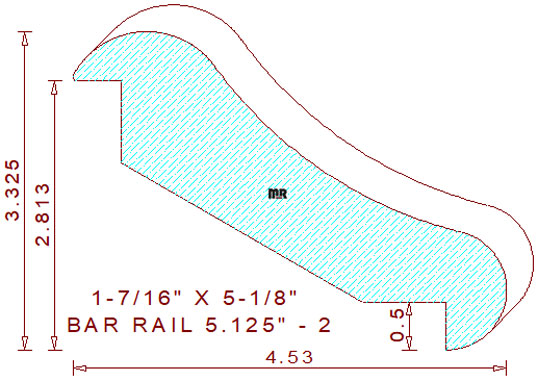

This steep 5-1/8" - 2 bar rail measures 5.125" wide by 1.437" thickness when milled. The installed dimensions are listed in the image above. The profile is comprised of a 7/8" radius arc at the top and a 5/8" radius semicircle at the bottom, connected by a tangent 4-1/2" radius cove in the center. The backside is rabbeted 1/2" wide by 2-13/16" tall in the upper portion and 13/16" wide by 1/2" tall at the bottom.

Review our commentary on custom-made pressure shoes this helpful step-by-step article will help you mill this profile to perfection. Did you know we design and grind knives for all the major machinery brand names, including Weinig, Leadermac, Diehl, Kentwood, Wadkin, Scmi, and more? Try our exceptional services; you'll be delighted with the results; all the beautiful mouldings you manufacture will surely be a cut above the rest.

For knife quoting purposes use the calculator below; we have added only the important measurements. A brief detailed explanation of how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction-decimal-millimeter chart and place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.125" / Depth of Cut = .974" (top knives) & .814" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
