Bar Rail 5-1/4"

Bar Rail 5-1/4"

Bar Rail 5-1/4"

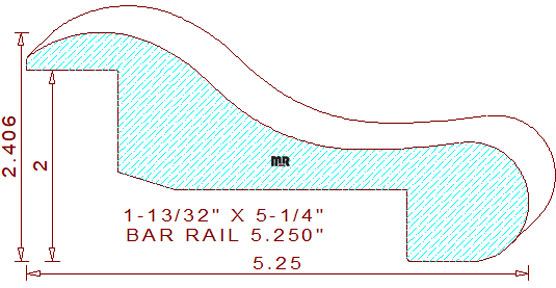

This good-looking 5-1/4" bar rail retains two measurements. The first set is the milled dimensions which are 5.487" wide by 1.401" thick. This detail is milled sprung (parallel to the moulder bedplates) and hold-down shoe. The profile can be milled from six-quarter lumber; any feed roller marks from the moulder feed system left remaining on the wood will be located on the back side (not seen). The pattern is designed to be milled face-side down. The other dimensions are viewed in the above image to help prepare elevation dimensions for the sub and countertop.

This Cad generated dxf file contains three professionally designed cad template drawings with much information to create cutters for this decorative bar rail detail. We lways provide sufficient blend areas in the knives, so no one will ever realize where one moulding cutter begins or ends. We rovide the cut steel size on all our template designs; this important information allows you to purchase the correct size width of knife steel before you start grinding procedures for moulding production.

For knife quoting purposes use the calculator below; we have added only the important measurements to determine the cutters you need. A brief detailed explanation of how to use the calculator is located here. Need some assistance with the dimensions? Prin a copy of our fraction-decimal-millimetre chart and place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 5.500" / Depth of Cut = 1.022" (top knives) & .625" (bottom cutters).

Thickness = 1.401" / Depth of Cut = .593" (left knives).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
