Bar Rail 6"

Bar Rail 6"

Bar Rail 6"

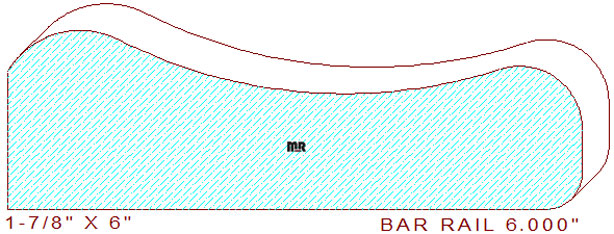

This 6" bar rail measures 6.000" wide by 1-7/8" thickness. The rolling profile comprises four tangent radius arcs and semicircles; the front bottom edge is eased with a 3/8" radius round over. These free-flowing geometrical shapes merge to create a beautiful bar railing for your home or local pub. The back side corner can be rabbeted to any specific size to custom fit the countertop.

Our purple colored ceramic blend grinding wheel hogging at 2000 rpm, with a twenty-five-degree back clearance angle will rough grind a set of high-speed steel cutters in a minimal amount of time. Review our article on the importance of having the profile grinder level this commentary will insure prolonged use of your machinery while maintaining consistent perfection when grinding cutters.

For knife quoting purposes use the calculator below; we have added only the important measurements to determine the cutters you need. A brief detailed explanation of how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction-decimal-millimeter chart and place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 6.000" / Depth of Cut = 1.187" (top knives).

Thickness = 1.875" / Depth of Cut = .551" (right blades).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
