Bar Rail 6-5/8"

Bar Rail 6-5/8"

Bar Rail 6-5/8"

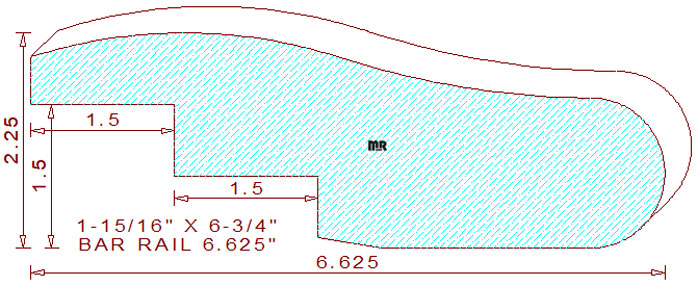

This beautiful bar rail 6-5/8" measures 6.750" wide by 1-15/16" thickness, milled sprung (lying parallel to the machine bed plates). The installed dimensions are shown in the image above. It is possible to mill this detail from eight-quarter lumber because it is milled face side down; any teeth roller marks from the machine's feed rollers would be on the bottom small chamfer in the middle. The creative profile comprises two tangent radiuses creating a smoother free-flowing transition into the 1-9/16" tall bullnose edge at the front of the design; the back side is rabbeted for the sub and countertop.

Architects, interior designers, lumber mills, and manufacturers have been utilizing our wide variety of creative designs for years; we trust you will find that special profile to enhance the architectural style of your client's home if you have any questions or concerns about knife grinding procedures for any of our profiles, please contact us, we would be honored to assist you.

For knife quoting purposes use the calculator below, we have added only the important measurements, determine the cutters you need. A brief detailed explanation of how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction-decimal-millimeter chart and place it on the machinery to help operators save time and increase accuracy during setup.

Width = 6.750" / Depth of Cut = 1.100" (top knives) & .675" (bottom cutters).

Thickness = 1.937" / Depth of Cut = .160" (right blades) & .838" (left knives).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
