Base Cap 2" - 7
Base Cap 2" - 7

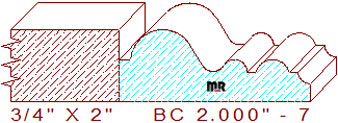

This attractive base cap 2" - 7 measures 2.000" wide by .750" thickness, allowing the detail to get milled from four-quarter lumber. The custom profile comprises a 1/8" broad line segment at a 7/16" thickness dimension on the left, this creates a quirk / sunk fillet when applied to a piece of S4S (surfaced four sides) lumber when installed, connected to a three tangent radius wave-like french curve and a 3/32" wide sunk fillet in the center, joined to an 11/32" wide half-circle with another 3/32" broad line and a 1/8" cove on the right side of the pattern. We offer a slightly larger profile for your review and consideration, base cap 2.062" - 3.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 2.000
Depth of Cut: 0.562
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$186.00
Not Needed
Total:
$186.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$197.00
Not Needed
Total:
$197.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$213.50
Not Needed
Total:
$213.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
